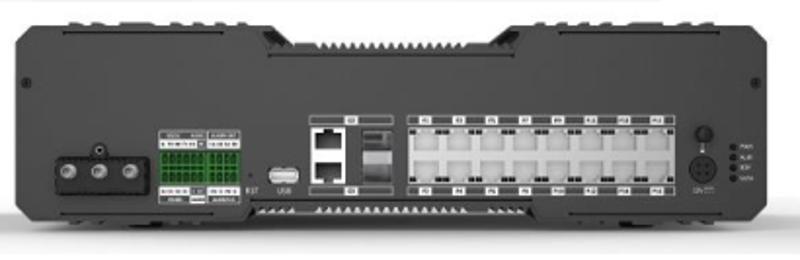

Traffic Server DS-TP50-16E

Mô tả

• Network Interface16 x 1000 M Ethernet interface, 1 x internal 10/100/1000 M self-adaptive Ethernet interface, 1 x external 10/100/1000 M self-adaptive Ethernet interface, 1 x internal 1000 M fiber interface, 1 x external 1000 M fiber interface
• Audio Input2
• Audio Output2
• Alarm Input2
• Alarm Output2
• RS-232 Interface2
• RS-485 Interface2
• USB1

• Function
• Data StorageVehicle information (passing records and pictures) storage
• Video RecordingVideo recording function. Recording duration is determined by the stream size and the HDD capacity.
• Data UploadingANPR and manual uploading
• Network SettingsAble to set two-segment IP address

• System
• ProcessorHigh-performance ARM A17 processor
• Operation SystemEmbedded Linux operating system
• Operating GUIWEB
• HDD Storage4 x SATA (Each SATA interface supports up to 6TB HDD.)
• RESET1 x RESET button
• Indicator4 x indicator (1 x Power Indicator, 1 x Alarm Indicator, 1 x HDD Indicator, 1 x Ready Indicator)

• General
• Working Temperature-40 °C to +70 °C (-40 °F to +158 °F)
• Working Humidity10% to 90%
• Power Supply12 VDC/12.5 A
• Dimension(L × W × H)370 × 273 × 102.5 mm (14.6 × 10.7 × 4.03 inch)
